Learning computer programming at the college level can be a difficult task for beginning students. I see their struggle, because I teach hundreds of these students every year at The Johns Hopkins University. Even if they have previously used languages such as BASIC, Pascal or C, the students soon discover that knowledge of the language is totally different from knowledge of programming methodology. There are important, underlying concepts that few students learn before reaching college.
Many of these concepts are difficult to illustrate to hundreds of students in a large lecture hall. To combat this problem, for the last two years I have been using my Amiga to create instructional videos for computer programming. They are displayed in the lecture hall using a video cassette player, a projector, and a movie screen.
These videos are not self-contained presentations that are meant to replace a human instructor. Instead, they replace the blackboard, and they are more powerful and dynamic than slides or overhead transparencies. Of course, it takes much longer to create a video than it does to write on the blackboard, so I cannot replace the board completely. At present, I try to show one five to ten minute video for each of the major concepts covered.
My goal in writing this article is to encourage other educators, particularly those with large classes, to use custom-made instructional videos in class. They are easy to create on Amigas; you don't have to be a great artist by any means. (I'm certainly not!) I can testify that my videos have a positive and lasting effect on my students.
A college student typically has many learning aids: the teacher, teaching assistants, textbooks, and friends. Why add instructional videos? Because they can improve the quality of lectures in several ways:
In place of expensive videotape editing facilities, I often make a CLI script that displays the different parts of the video in order. For example, the script might display some title screens using an IFF picture viewer, run an animation player, and then execute some C programs. To minimize loading time, I often move everything to a RAM disk. For faster transitions on tape, I make careful use of the VCR "pause" key.
The output quality would be better if I used a genlock, but clear resolution is not very important in my work. This is because any fine details in the final product get washed out anyway by the video projection equipment.
Here are several examples of some videos that have been used in my classes, or are currently in progress.
Then, using Aegis Animator, I designed animations to illustrate the rules, showing how new creatures appear and old ones disappear in the grid.
For a full-blown demonstration, I chose Tomas Rokicki's Freeware program LIFE from Fish Disk 306. It displays thousands of creatures evolving at 20 generations per second.

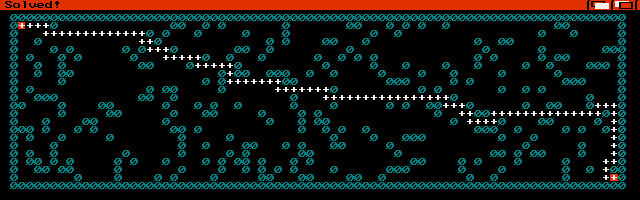

Because it is important to understand the underlying algorithm, I wanted my students to be able to watch the entire process of maze solution, including correct and incorrect attempts. This problem was too tough for Deluxe Paint and Aegis Animator, so I pulled out my Manx C compiler and Amiga manuals and went to work.
First, I wrote a small program that generated a random maze on a custom screen. (The program "flipped a coin" for each area of the maze, to see if it would be empty or contain a wall.) For simplicity, I used ASCII characters for the display, since the students themselves would be working on non-graphic terminals.
Once this was done, I added code for solving the maze. The program would drop a "marker" as it explored a particular square of the maze. If that square turned out to be part of the solution, the marker remained; otherwise, it was "picked up" (removed) and another path was explored.
In this way, the students could watch the program explore one path, reach a dead end, turn around, and try another route.
Finally, I used Deluxe Paint to create a few motivating title screens, made a CLI script to execute everything in order, and dumped it all to videotape. This turned out to be the most popular video of the semester.
Since all of this "asking" and "chaining" occurs in memory, it can be difficult for students to visualize the process. Instructors typically have to draw many pictures on the blackboard, erasing and redrawing as needed. Through video, I have found a better method.

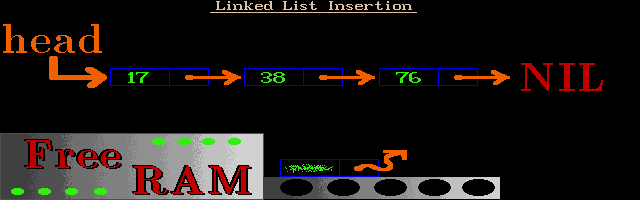

Using Deluxe Paint and Aegis Animator, I constructed an abstract "machine" (with a little conveyer belt) that produces a chunk of memory whenever asked. This is a model of what happens inside the computer. Initially, the memory contains undefined (garbage) values, indicated by blotches and bent arrows.
The students watch as the new memory chunk is filled with proper data values, and then inserted into the linked list. The arrows (pointers) are animated so the students can see the order in which pointers are linked and unlinked. The students also see what happens when a programmer is careless with unlinking: part of the list can be lost.
Another problem is that video projectors are not interactive; I need to plan the entire video in advance, and narrate as it is displayed. Instead, I would like to bring an Amiga directly into the classroom and connect it to a projection unit, giving me greater flexibility during the presentation.
In this article, I have tried to demonstrate the usefulness of video in teaching introductory computer science. If anybody would like to discuss this topic with me in more detail, you may send electronic mail to me on the Internet at barrett@cs.umass.edu.
